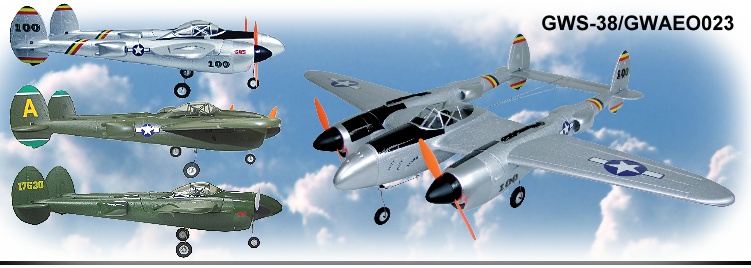

GWAEO023 (GWS-38)

ITEM

GWAEO023B

GWAEO023C

GWAEO023D

GWAEO023F

GWAEO023G

GWAEO023H

GWS38 EPS300X2 (Silver)

GWS38 BL2208X2 (Silver)

GWS38 BL2208X2 (white)

GWS38 EPS300X2 (white)

GWS38 EPS300X2 (Green)

GWS38 BL2208X2 (Green)


[ Specification ]

Length: 853mm (33.6 in.)

Wing Span: 1200mm (47.2 in.)

Wing Area: 19.9dm2 (308.5 sq. in.)

Flying Weight: 720g (25.4oz.)

Wing Loading: 36.2 g /dm² (11.9oz./sq. ft.)

Power System: GWS 2208/18T or EPS300C

Propeller: EP804390471047

Servo : NARO *4

Receiver: R6NII / RD8SL / R8MSL / R8MSL+

Speed controller :GWESC25A×2ICS600Li×2

Radio Required: 4CH Channel radio or above

Power system

BL2208

BL2212

EPS300C

EPS350C

Propeller

EP9050

EP9050

 EP8043

EP8040

EP8043

EP8040

Battery

11.1V 1500mAH 10C+ ~2200mAH 6C+ Li-Po9.6V 1500mAH AA Ni-MH

9.6V 1500mAH AA Ni-MH

ESC

for Brushless Motors

GWESC25~35A×2

for Brushed Motors

ICS400×2, ICS600

Servo

NARO×4

Receiver

GWS 6~8ch Receive

Transmitter

T4AII OR T6A

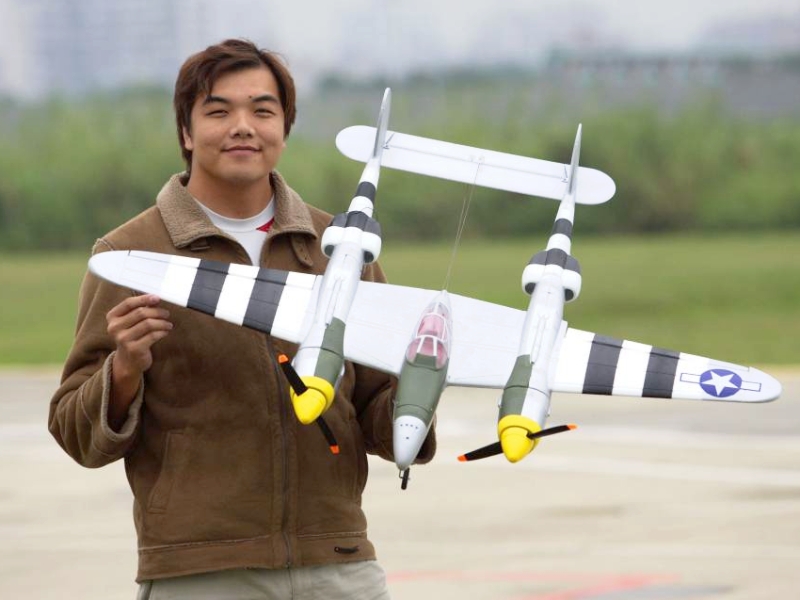

Chane from RC Tech TW. he spent 5 days to make this GWS-38.

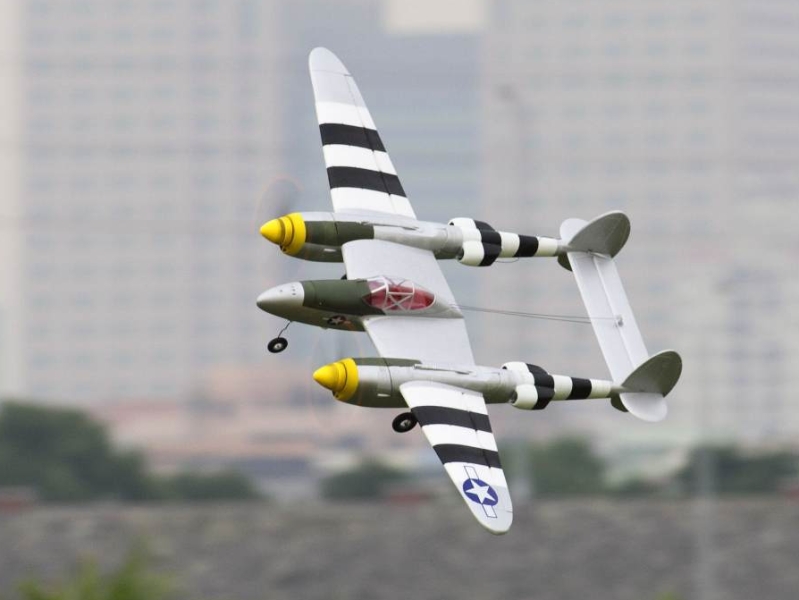

Inverted flight
Chris Johnson. Early Bird. Member. Kit was damaged during the shippment. Fixed it and Fly. Jim & his buddy Carl. Jim has the most powerful GWS-38 that I even seen. He got the power!! He is also from DOD AF.

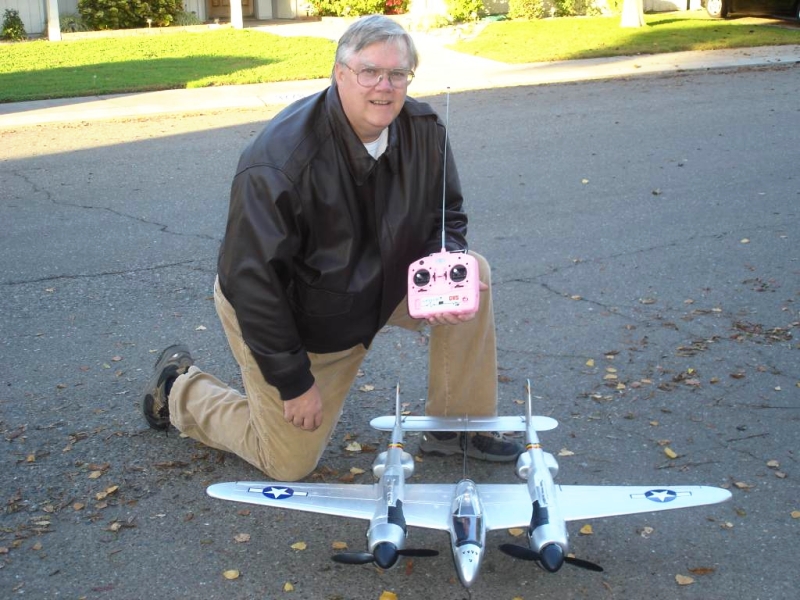

This GWS-38 from Michael Ramsey for Model Aviation. Michael also spent several days to finish this airplane.

Ken, a very knowledgeable early brid. Many flyers here have read a lot of testing info from him.

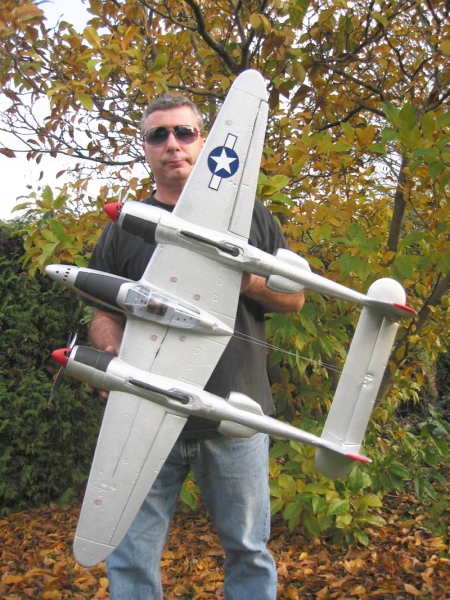

This one is Merlin's GWS-38.

Michael, Ezone Moderator & GWS Early Bird Member, has done many review for Ezone. Thanks big brother.

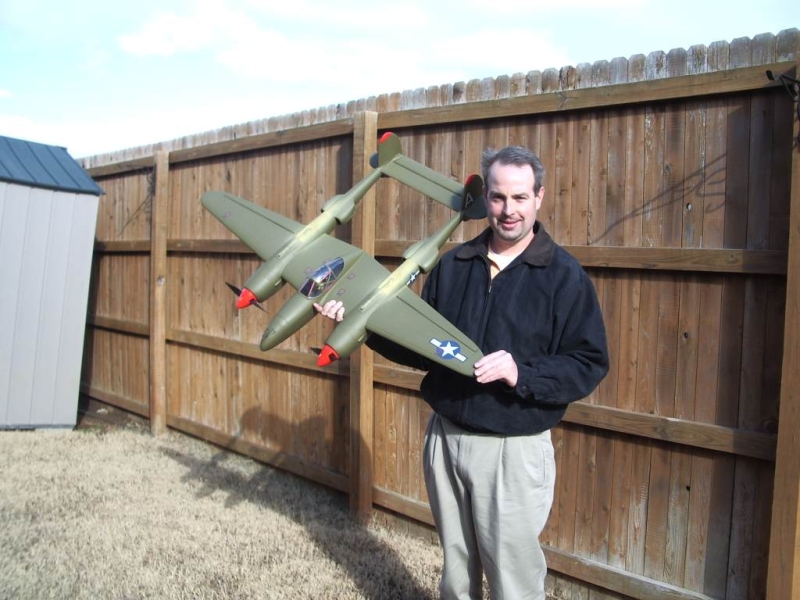

Matt, he said he is a happy GWS fan. We are happy GWS product makers. Thanks for your photos.

standard Green

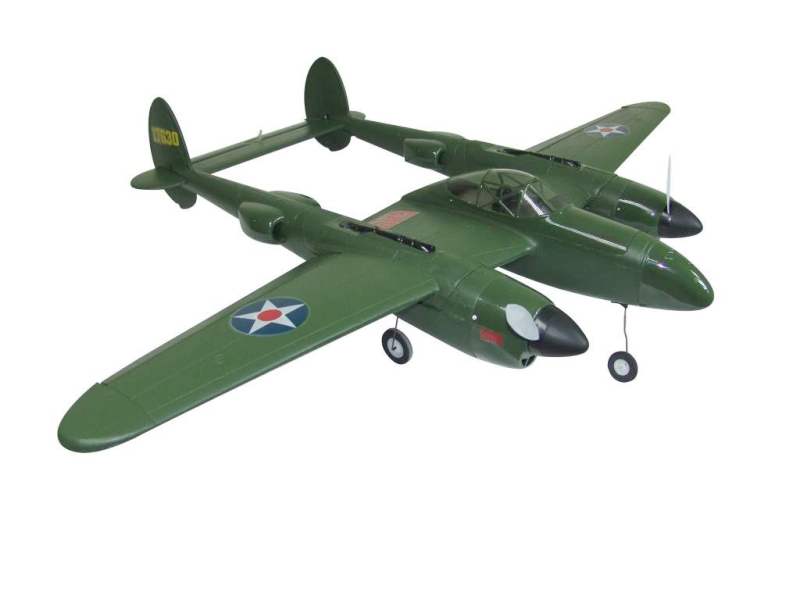

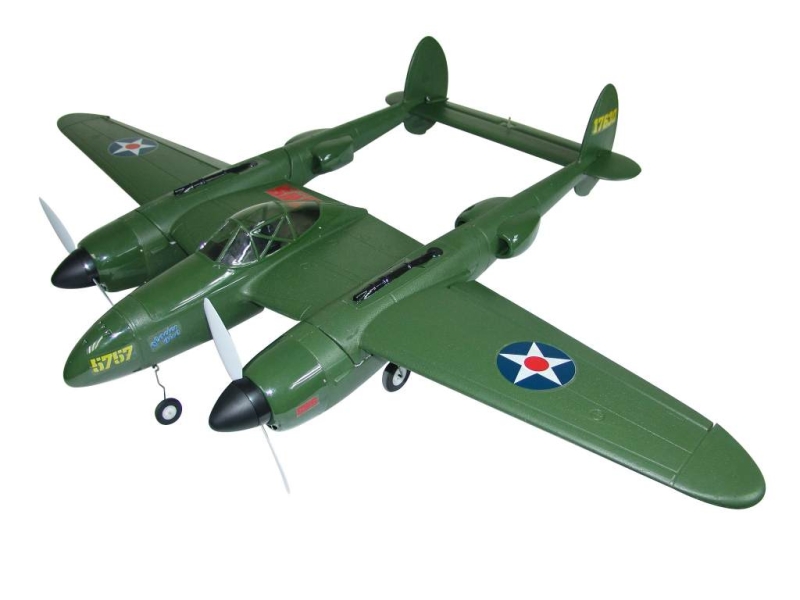

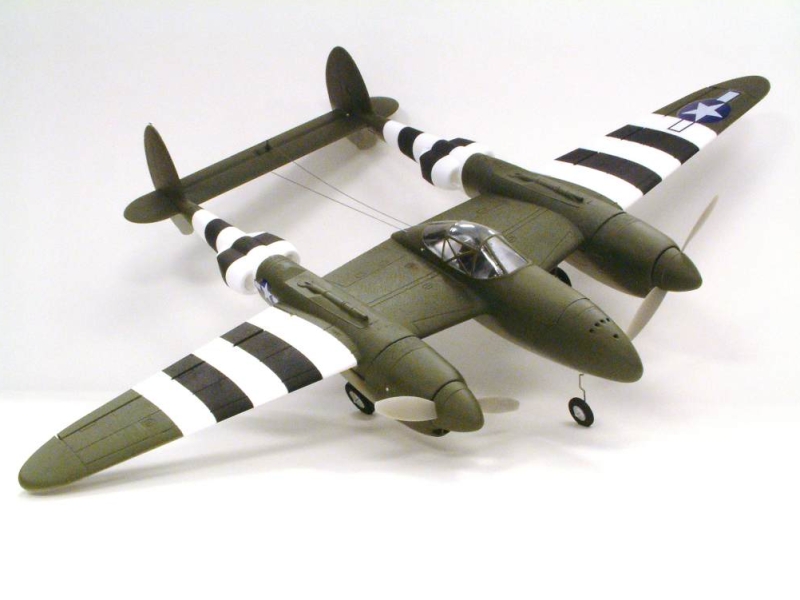

Standard Army Green

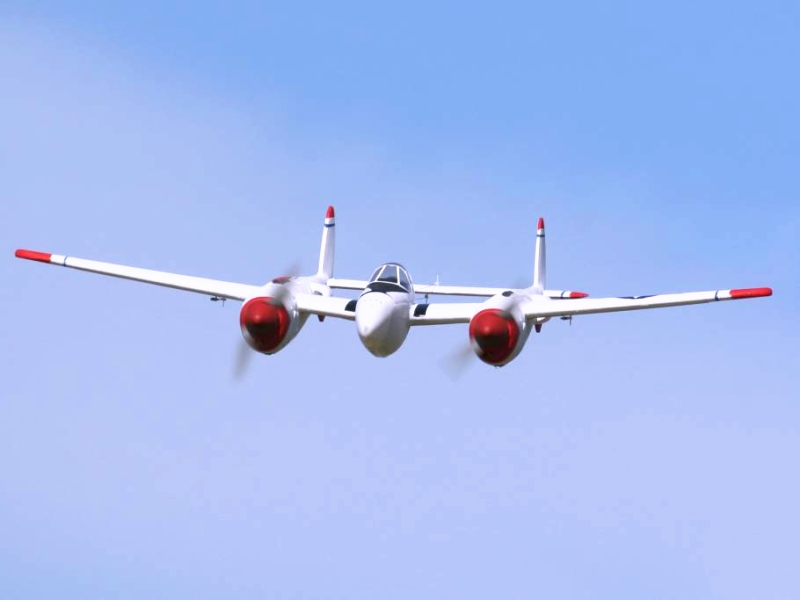

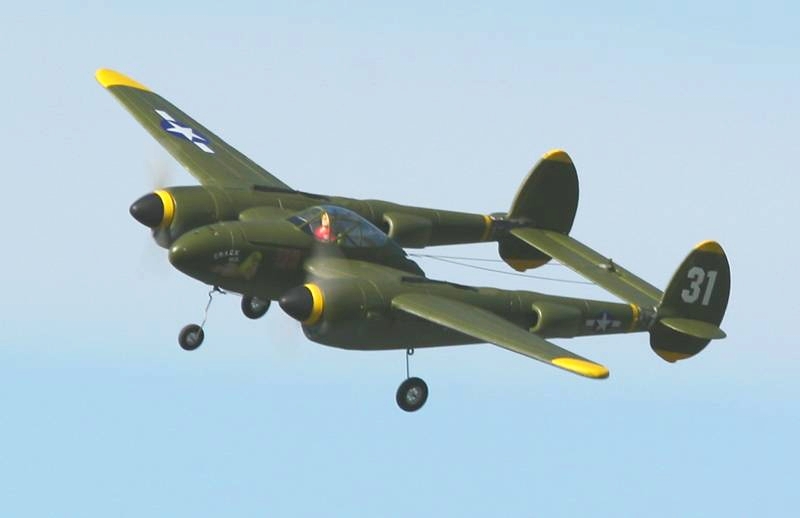

GWS-38 amazing moment in the air. from Jim -- update new one.

I added this one later after I review this thread. good shot in the air. Todd's GWS-38. excellent catch in the moment.

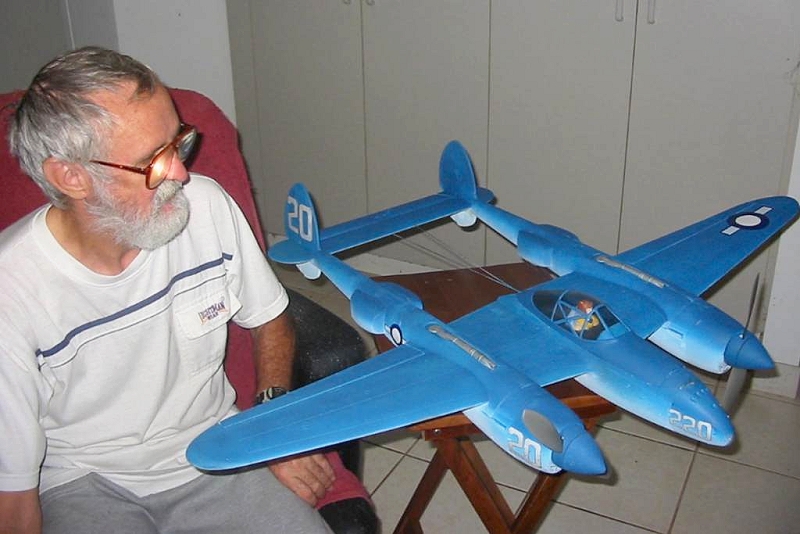

photos from Red 61. This airplane does mean something to his family since his grandpa got one. This is the GWS-38 took most of the time and with most of the effort to build. Nice to have it.
