【GWS262 SPECIFICATION】

ITEM

GWAEO024

GWAEO024C

GWAEO024D

GWAEO024E

GWS-262 EDF64-300H White

GWS-262 EDF64-300H Colored

GWS-262 EDF64-BL2028 White

GWS-262 EDF64-BL2028 Colored



Length: 842mm (33.1 in.)

Wing Span: 1050mm (41.34 in.)

Wing Area: 17dm²  (263.6 sq. in.)

Flying Weight: 790g (27.9 oz.)

Wing Loading: 46.5 g /dm² (15.3 oz./sq. ft.)

Power System: EDF64-300H ／EDF64-GWBLM005A (GWS2028/KV3900)

Battery：11.1V/ 1.3Ah(15c)~ 2.2Ah(10c) Li-Po 9.6V 1600mAh Ni-Mh

Servo : NARO *4

Receiver: R6NII / R8MSL

Speed controller: ICS600Li／ICS600／GWESC25A×2

Radio Required: 4CH Channel radio or above

EDF-64 With GWSBLM005A X 2 on Me-262
 Volts (v) Current Draw

Thrust
7.4V 12.1A 269G
11.1V 21.6A 556G
14.8V 31.8A 830G



GWS262 Media Play TIME

NOTE
  Video-1

Capacity: 12,733k    Time: 1:53

 Outdoor Fly show
  Video-2

Capacity: 12,616k    Time: 1:54

 Outdoor Fly show

GWAEO024 MANUAL

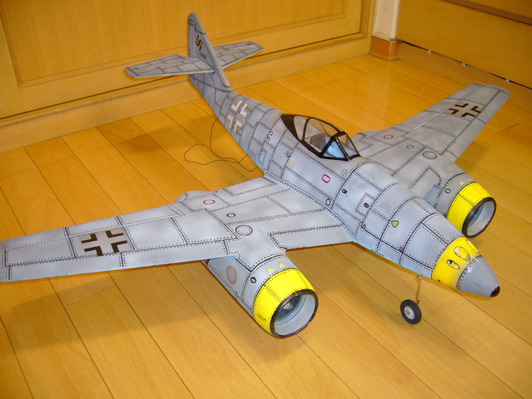

another magic touch by early bird.

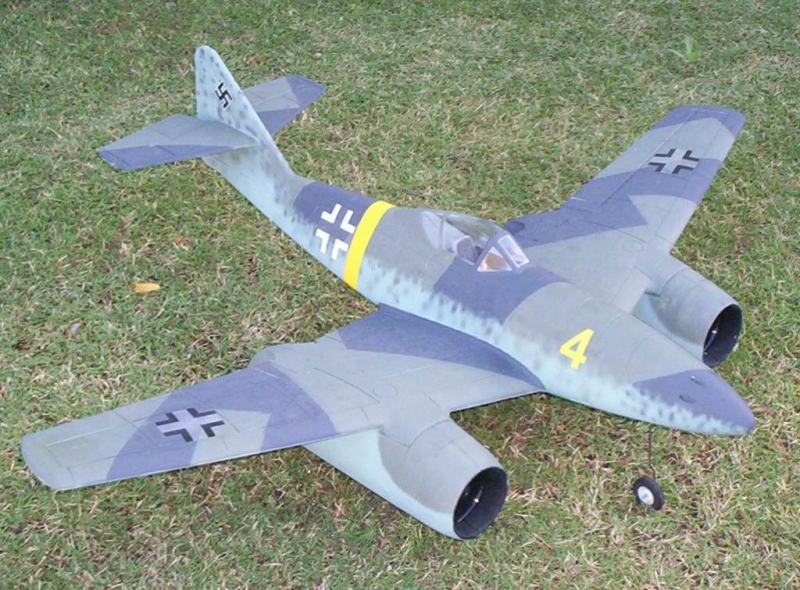

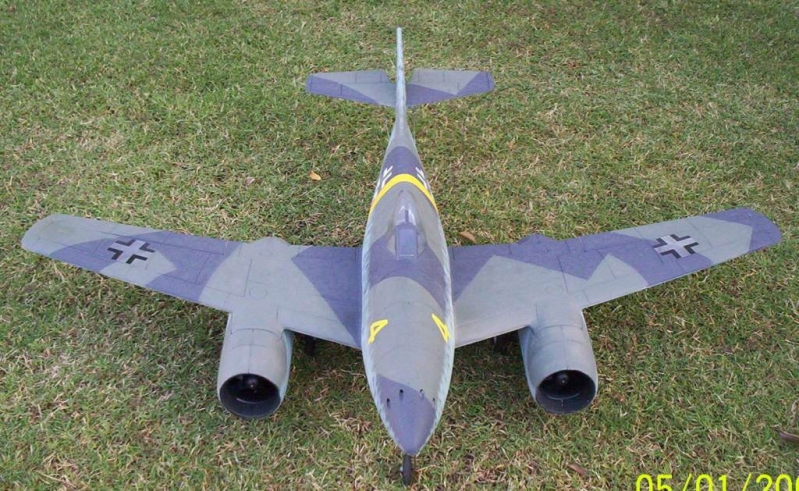

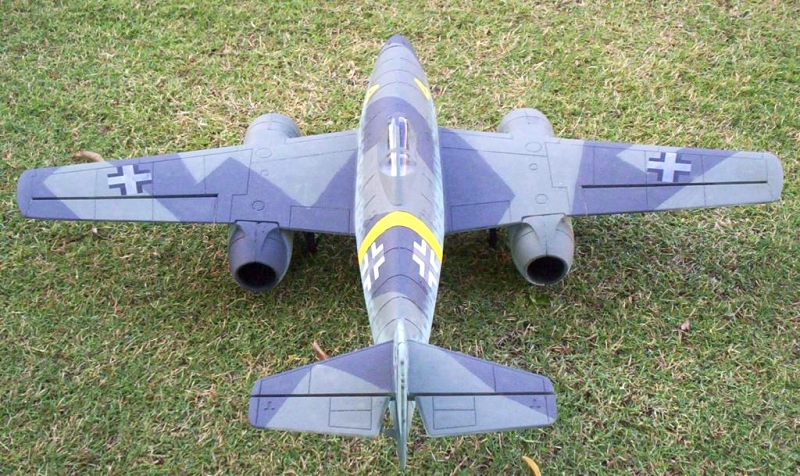

Excellent Paint Scheme - from Smoking Beaver, one of the GWS Early Birds.

not actual color scheme for mass production.

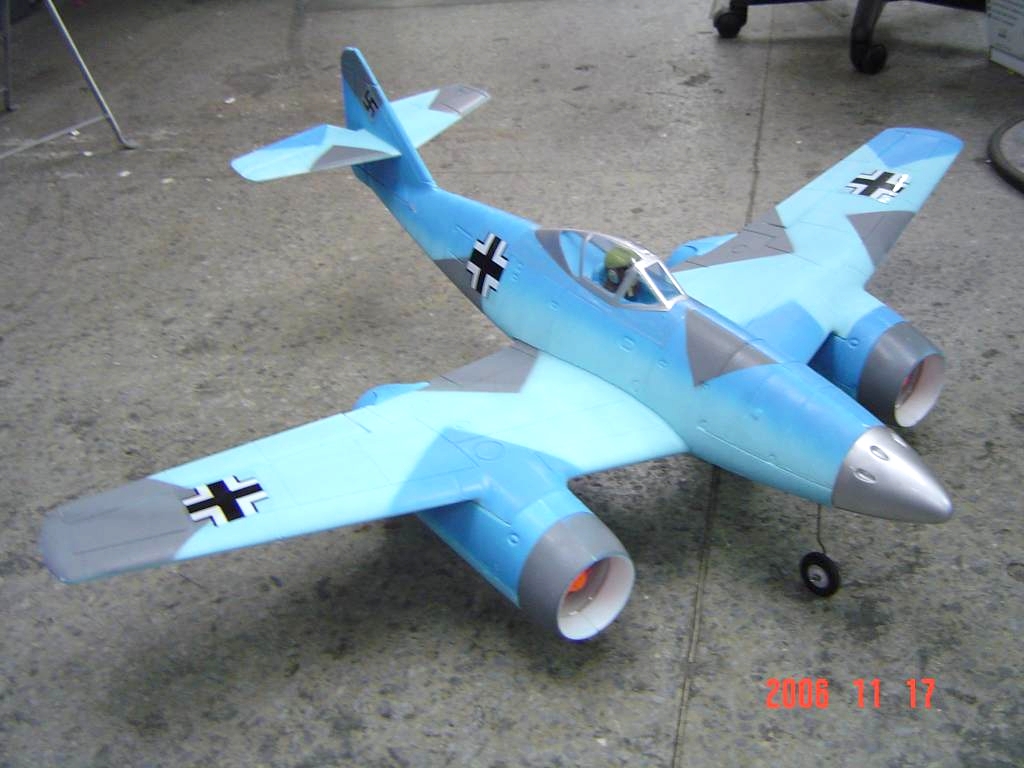

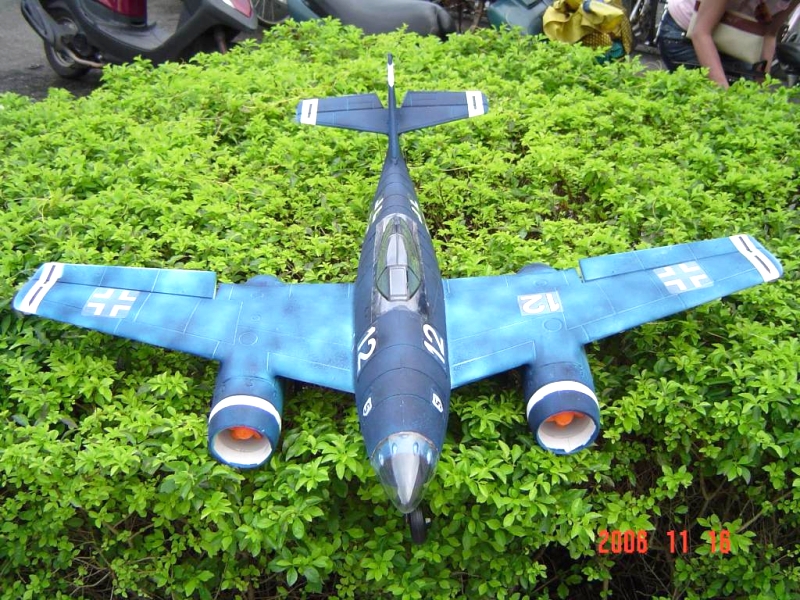

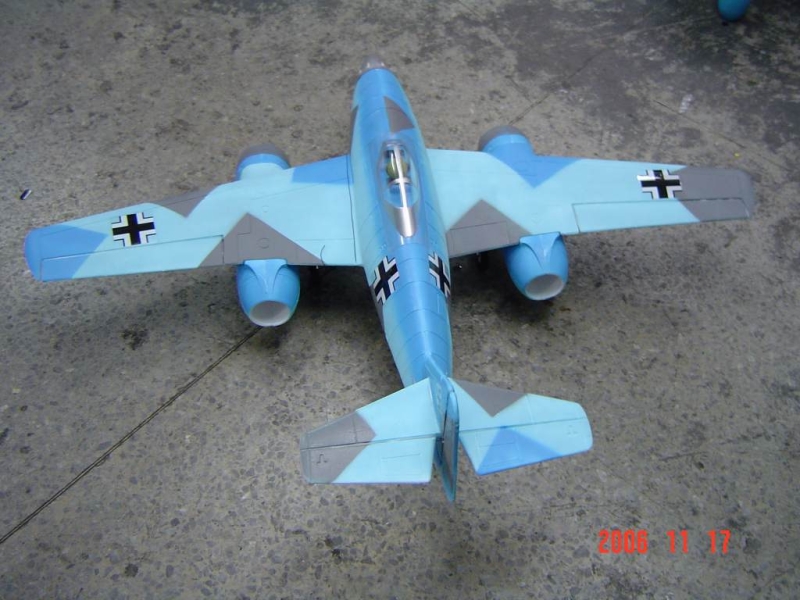

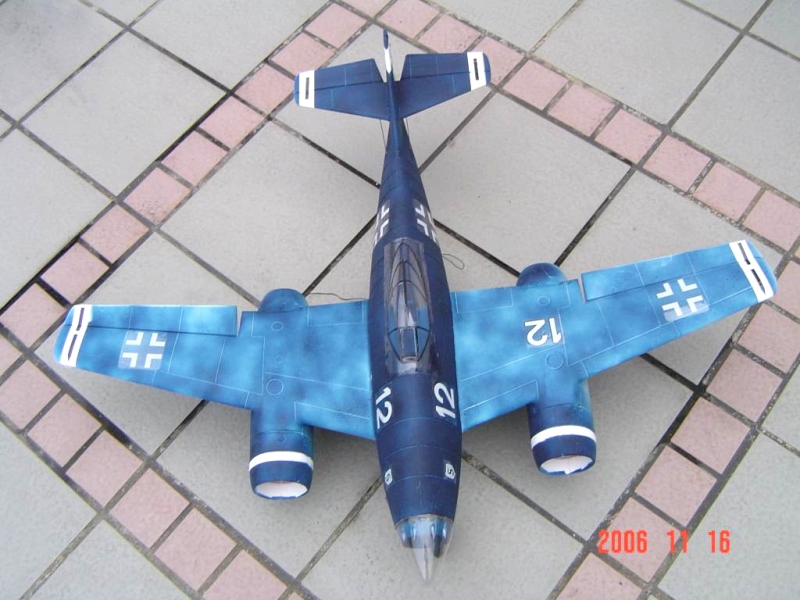

Here is a few nice painted 262 -- I asked GWS Factory Retail Shop to put them together for Nuremberg Toy Fair Show.



   another one for testing.

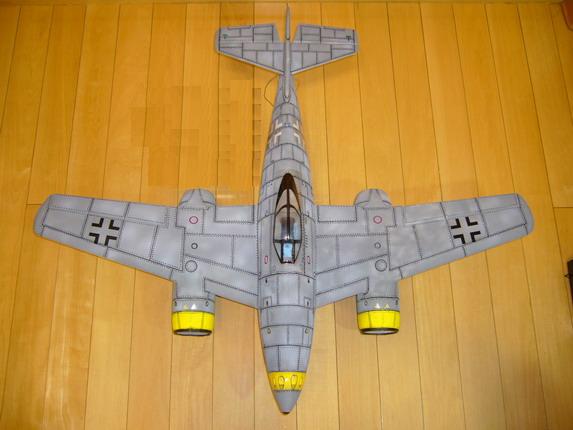

From Early Bird, Mr. Kennji Hamamoto, Japan. I think he ordered 6 pcs of GWS-38 & 4 pcs of GWS-262.
