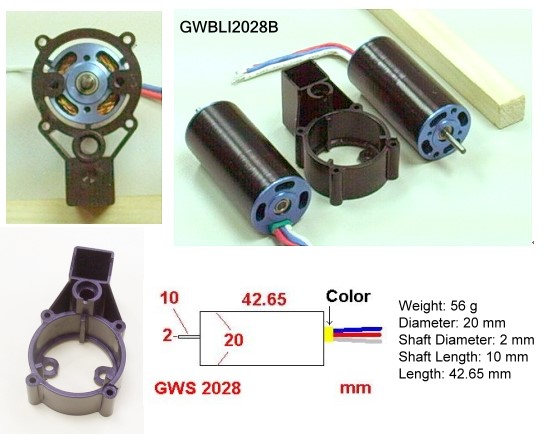

Weight: 56 g |
Diameter: 20 mm |
Shaft Diameter: 2 mm |
Shaft Length: 10 mm |
Length:
42.65 mm |
|
Item Number |
Description |
KV |
Unit Price |
|
GWBLM005AZ |
GW BLM005A (3mm)
Green
|
3900 |
|
|
GWBLM005Z |
GW BLM005 (3mm)
Blue |
4600 |
|
|
GWBLM005 |
Inrunner BL Motor 2028 Blue |
4600 |
|
|
GWBLM005A |
Inrunner BL Motor 2028 Green |
3900 |
|
|
GWBLM005B |
Inrunner BL Motor 2028 Black |
3000 |
|
|
GWBLM005C |
Inrunner BL Motor 2028 Yellow |
2300 |
|
|
GWEPS0011S |
EPS-BLM005A-1S/BB
Green |
3900 |
|
|
GWEPS0012S |
EPS-BLM005A-2S/BB
Green |
3900 |
|
|
GWEPS001AS |
EPS-BLM005A-AS/BB
Green |
3900 |
|
|
GWEPS001BS |
EPS-BLM005A-BS/BB
Green |
3900 |
|
|
GWEPS001CS |
EPS-BLM005A-CS/BB
Green |
3900 |
|
|
GWEPS001DS |
EPS-BLM005A-DS/BB
Green |
3900 |
|
|
GWEPS0021S |
EPS-BLM005-1S/BB
Blue |
4600 |
|
|
GWEPS0022S |
EPS-BLM005-2S/BB
Blue |
4600 |
|
|
GWEPS002AS |
EPS-BLM005-AS/BB
Blue |
4600 |
|
|
GWEPS002BS |
EPS-BLM005-BS/BB
Blue |
4600 |
|
|
GWEPS002CS |
EPS-BLM005-CS/BB
Blue |
4600 |
|
|
GWEPS002DS |
EPS-BLM005-DS/BB
Blue |
4600 |
|
|
GWEMM20T |
EPSC Motor Mount 20mm 2PCs |
Other items you may
need |
|
GW/AP076 |
10x10x90mm Wood Stick |
The following test datas have been noted all by applying continual
high RPMs for 5 minutes respectively.
|
POWER SYSTEM: |
EDF-55 |
|
|
Motor: |
GWBLM005 |
Weight: |
57 Grams |
KV value: |
4600 |
|
PROPELLER |
Volts (V) |
Amps (A) |
Thrust |
Power (W) |
Efficiency |
Temp. |
RPM |
|
g |
oz |
g/w |
oz/kw |
C. |
|
EP2245X6 |
7.4 |
9.2 |
188.00 |
6.63 |
68.08 |
2.76 |
97.40 |
37 |
23250 |
|
EP2245X6 |
11.1 |
17.1 |
381.00 |
13.44 |
189.81 |
2.01 |
70.80 |
50 |
31950 |
| |
|
|
|
|
|
|
|
|
|
|
POWER SYSTEM: |
EDF-55 |
|
|
Motor: |
GWBLM005C |
Weight: |
57 Grams |
KV value: |
2300 |
|
PROPELLER |
Volts (V) |
Amps (A) |
Thrust |
Power (W) |
Efficiency |
Temp. |
RPM |
|
g |
oz |
g/w |
oz/kw |
C. |
|
EP2245X6 |
7.4 |
2 |
63.00 |
2.22 |
14.80 |
4.26 |
150.14 |
31 |
13900 |
|
EP2245X6 |
11.1 |
3.8 |
144.00 |
5.08 |
42.18 |
3.41 |
120.41 |
35 |
20450 |
|
EP2245X6 |
14.8 |
6.1 |
241.00 |
8.50 |
90.28 |
2.67 |
94.15 |
40 |
26300 |
| |
|
|
|
|
|
|
|
|
|
|
POWER SYSTEM: |
EDF-55 |
|
|
Motor: |
GWBLM005A |
Weight: |
57 Grams |
KV value: |
3900 |
|
PROPELLER |
Volts (V) |
Amps (A) |
Thrust |
Power (W) |
Efficiency |
Temp. |
RPM |
|
g |
oz |
g/w |
oz/kw |
C. |
|
EP2245X6 |
7.4 |
5.5 |
131.00 |
4.62 |
40.70 |
3.22 |
113.52 |
36 |
19550 |
|
EP2245X6 |
11.1 |
10.3 |
278.00 |
9.81 |
114.33 |
2.43 |
85.76 |
46 |
27950 |
|
EP2245X6 |
14.8 |
15.9 |
448.00 |
15.80 |
235.32 |
1.90 |
67.15 |
58 |
35200 |
| |
|
|
|
|
|
|
|
|
|
|
POWER SYSTEM: |
EDF-55 |
|
|
Motor: |
GWBLM005B |
Weight: |
57 Grams |
KV value: |
3000 |
|
PROPELLER |
Volts (V) |
Amps (A) |
Thrust |
Power (W) |
Efficiency |
Temp. |
RPM |
|
g |
oz |
g/w |
oz/kw |
C. |
|
EP2245X6 |
7.4 |
3 |
97.00 |
3.42 |
22.20 |
4.37 |
154.11 |
35 |
15500 |
|
EP2245X6 |
11.1 |
5.7 |
180.00 |
6.35 |
63.27 |
2.84 |
100.34 |
40 |
22900 |
|
EP2245X6 |
14.8 |
9.3 |
326.00 |
11.50 |
137.64 |
2.37 |
83.54 |
52 |
30250 |
| |
|
|
|
|
|
|
|
|
|
|
POWER SYSTEM: |
EDF-64 |
|
|
Motor: |
GWBLM005 |
Weight: |
57 Grams |
KV Value: |
4600 |
|
PROPELLER |
Volts (V) |
Amps (A) |
Thrust |
Power (W) |
Efficiency |
Temp. |
RPM |
|
g |
oz |
g/w |
oz/kw |
C. |
|
EP2540X6 |
7.4 |
9.5 |
212.00 |
7.48 |
70.30 |
3.02 |
106.36 |
39 |
23300 |
|
EP2540X6 |
11.1 |
17.2 |
410.00 |
14.46 |
190.92 |
2.15 |
75.74 |
52 |
31950 |
| |
|
|
|
|
|
|
|
|
|
|
POWER SYSTEM: |
EDF-64 |
|
|
Motor: |
GWBLM005C |
Weight: |
57 Grams |
KV Value: |
2300 |
|
PROPELLER |
Volts (V) |
Amps (A) |
Thrust |
Power (W) |
Efficiency |
Temp. |
RPM |
|
g |
oz |
g/w |
oz/kw |
C. |
|
EP2540X6 |
7.4 |
2.2 |
79.00 |
2.79 |
16.28 |
4.85 |
171.15 |
32 |
13900 |
|
EP2540X6 |
11.1 |
3.9 |
158.00 |
5.57 |
43.29 |
3.65 |
128.73 |
35 |
20450 |
|
EP2540X6 |
14.8 |
6.2 |
268.00 |
9.45 |
91.76 |
2.92 |
103.01 |
42 |
26650 |
| |
|
|
|
|
|
|
|
|
|
|
POWER SYSTEM: |
EDF-64 |
|
|
Motor: |
GWBLM005A |
Weight: |
57 Grams |
KV Value: |
3900 |
|
PROPELLER |
Volts (V) |
Amps (A) |
Thrust |
Power (W) |
Efficiency |
Temp. |
RPM |
|
g |
oz |
g/w |
oz/kw |
C. |
|
EP2540X6 |
7.4 |
5.9 |
161.00 |
5.68 |
43.66 |
3.69 |
130.06 |
48 |
19800 |
|
EP2540X6 |
11.1 |
10.8 |
301.00 |
10.62 |
119.88 |
2.51 |
88.56 |
50 |
28400 |
|
EP2540X6 |
14.8 |
16.2 |
508.00 |
17.92 |
239.76 |
2.12 |
74.73 |
60 |
35800 |
| |
|
|
|
|
|
|
|
|
|
|
POWER SYSTEM: |
EDF-64 |
|
|
Motor: |
GWBLM005B |
Weight: |
57 Grams |
KV Value: |
3000 |
|
PROPELLER |
Volts (V) |
Amps (A) |
Thrust |
Power (W) |
Efficiency |
Temp. |
RPM |
|
g |
oz |
g/w |
oz/kw |
C. |
|
EP2540X6 |
7.4 |
3.5 |
102.00 |
3.60 |
25.90 |
3.94 |
138.90 |
37 |
16150 |
|
EP2540X6 |
11.1 |
6.3 |
218.00 |
7.69 |
69.93 |
3.12 |
109.95 |
48 |
23650 |
|
EP2540X6 |
14.8 |
9.7 |
365.00 |
12.87 |
143.56 |
2.54 |
89.67 |
56 |
30500 |
Speed Controller :
GWESC25A
Motor：GWBLM005
KV：4600
The following test
datas have been noted all by applying continual high RPMs for 2 minutes
with 4600KV inrunner motor respectively.
|
EPS-2S |
|
PROPELLER |
Volts (V) |
Amps (A) |
Thrust |
Power (W) |
Efficiency |
|
g |
oz |
g/w |
oz/kw |
|
EP-6030 |
7.4 |
4.7 |
160.00 |
5.64 |
34.78 |
4.60 |
162.25 |
|
EP-6030 |
11.1 |
10.2 |
354.00 |
12.49 |
113.22 |
3.13 |
110.28 |
|
EP-6050 |
7.4 |
7.7 |
250.00 |
8.82 |
56.98 |
4.39 |
154.75 |
|
EP-6050 |
11.1 |
11.6 |
418.00 |
14.74 |
128.76 |
3.25 |
114.50 |
|
EP-7035 |
7.4 |
6 |
251.00 |
8.85 |
44.40 |
5.65 |
199.39 |
|
EP-7035 |
11.1 |
11.1 |
542.00 |
19.12 |
123.21 |
4.40 |
155.15 |
|
EP-7060 |
7.4 |
12.6 |
402.00 |
14.18 |
93.24 |
4.31 |
152.06 |
|
EP-7060 |
11.1 |
22 |
0.00 |
0.00 |
244.20 |
0.00 |
0.00 |
|
EP-8040 |
7.4 |
10 |
419.00 |
14.78 |
74.00 |
5.66 |
199.70 |
|
EP-8040 |
11.1 |
18 |
820.00 |
28.92 |
199.80 |
4.10 |
144.75 |
|
EP-8043 |
7.4 |
12 |
475.00 |
16.75 |
88.80 |
5.35 |
188.66 |
|
EP-8043 |
11.1 |
22.9 |
0.00 |
0.00 |
254.19 |
0.00 |
0.00 |
|
EP-8060 |
7.4 |
14.6 |
483.00 |
17.04 |
108.04 |
4.47 |
157.68 |
|
EP-8060 |
11.1 |
0 |
0.00 |
0.00 |
0.00 |
#DIV/0! |
#DIV/0! |
|
HD-8060 |
7.4 |
14 |
461.00 |
16.26 |
103.60 |
4.45 |
156.94 |
|
HD-8060 |
11.1 |
23.6 |
0.00 |
0.00 |
261.96 |
0.00 |
0.00 |
|
|
|
|
|
|
|
|
|
|
EPS-1S |
|
PROPELLER |
Volts (V) |
Amps (A) |
Thrust |
Power (W) |
Efficiency |
|
g |
oz |
g/w |
oz/kw |
|
EP-6030 |
7.4 |
6.3 |
195.00 |
6.88 |
46.62 |
4.18 |
147.53 |
|
EP-6030 |
11.1 |
12.8 |
367.00 |
12.94 |
142.08 |
2.58 |
91.10 |
|
EP-6050 |
7.4 |
9.6 |
264.00 |
9.31 |
71.04 |
3.72 |
131.07 |
|
EP-6050 |
11.1 |
21 |
414.00 |
14.60 |
233.10 |
1.78 |
62.64 |
|
EP-7035 |
7.4 |
7.9 |
270.00 |
9.52 |
58.46 |
4.62 |
162.90 |
|
EP-7035 |
11.1 |
13.2 |
565.00 |
19.93 |
146.52 |
3.86 |
136.01 |
|
EP-7060 |
7.4 |
14.7 |
419.00 |
14.78 |
108.78 |
3.85 |
135.85 |
|
EP-7060 |
11.1 |
25 |
691.00 |
24.37 |
277.50 |
2.49 |
87.83 |
|
EP-8040 |
7.4 |
11.7 |
440.00 |
15.52 |
86.58 |
5.08 |
179.24 |
|
EP-8040 |
11.1 |
20.8 |
832.00 |
29.34 |
230.88 |
3.60 |
127.10 |
|
EP-8043 |
7.4 |
14.2 |
470.00 |
16.58 |
105.08 |
4.47 |
157.76 |
|
EP-8043 |
11.1 |
24 |
0.00 |
0.00 |
266.40 |
0.00 |
0.00 |
|
EP-8060 |
7.4 |
16.9 |
490.00 |
17.28 |
125.06 |
3.92 |
138.19 |
|
EP-8060 |
11.1 |
0 |
0.00 |
0.00 |
0.00 |
#DIV/0! |
#DIV/0! |
|
HD-8060 |
7.4 |
15.6 |
444.00 |
15.66 |
115.44 |
3.85 |
135.65 |
|
HD-8060 |
11.1 |
0 |
0.00 |
0.00 |
0.00 |
#DIV/0! |
#DIV/0! |
| |
|
|
|
|
|
|
|
|
EPS-AS |
|
PROPELLER |
Volts (V) |
Amps (A) |
Thrust |
Power (W) |
Efficiency |
|
g |
oz |
g/w |
oz/kw |
|
EP-7035 |
7.4 |
3.1 |
103.00 |
3.63 |
22.94 |
4.49 |
158.36 |
|
EP-7035 |
11.1 |
5.6 |
280.00 |
9.88 |
62.16 |
4.50 |
158.87 |
|
EP-7060 |
7.4 |
6.8 |
250.00 |
8.82 |
50.32 |
4.97 |
175.23 |
|
EP-7060 |
11.1 |
12.5 |
511.00 |
18.02 |
138.75 |
3.68 |
129.90 |
|
EP-8040 |
7.4 |
5.3 |
249.00 |
8.78 |
39.22 |
6.35 |
223.92 |
|
EP-8040 |
11.1 |
9.9 |
548.00 |
19.33 |
109.89 |
4.99 |
175.88 |
|
EP-8043 |
7.4 |
6.5 |
298.00 |
10.51 |
48.10 |
6.20 |
218.51 |
|
EP-8043 |
11.1 |
12.2 |
649.00 |
22.89 |
135.42 |
4.79 |
169.03 |
|
EP-8060 |
7.4 |
8.3 |
360.00 |
12.70 |
61.42 |
5.86 |
206.73 |
|
EP-8060 |
11.1 |
17 |
651.00 |
22.96 |
188.70 |
3.45 |
121.68 |
|
HD-8060 |
7.4 |
7.4 |
291.00 |
10.26 |
54.76 |
5.31 |
187.43 |
|
HD-8060 |
11.1 |
13.6 |
590.00 |
20.81 |
150.96 |
3.91 |
137.85 |
|
EP-9047 |
7.4 |
9.4 |
437.00 |
15.41 |
69.56 |
6.28 |
221.58 |
|
EP-9047 |
11.1 |
16.1 |
821.00 |
28.96 |
178.71 |
4.59 |
162.03 |
|
EP-9050 |
7.4 |
8 |
395.00 |
13.93 |
59.20 |
6.67 |
235.33 |
|
EP-9050 |
11.1 |
15.6 |
807.00 |
28.46 |
173.16 |
4.66 |
164.37 |
|
HD-9075 |
7.4 |
11 |
384.00 |
13.54 |
81.40 |
4.72 |
166.38 |
|
HD-9075 |
11.1 |
20 |
740.00 |
26.10 |
222.00 |
3.33 |
117.57 |
|
EP-9070 |
7.4 |
12.4 |
477.00 |
16.82 |
91.76 |
5.20 |
183.35 |
|
EP-9070 |
11.1 |
22.8 |
768.00 |
27.09 |
253.08 |
3.03 |
107.03 |
| |
|
|
|
|
|
|
|
|
EPS-BS |
|
PROPELLER |
Volts (V) |
Amps (A) |
Thrust |
Power (W) |
Efficiency |
|
g |
oz |
g/w |
oz/kw |
|
EP-8040 |
7.4 |
5 |
190.00 |
6.70 |
37.00 |
5.14 |
181.12 |
|
EP-8040 |
11.1 |
8.9 |
463.00 |
16.33 |
98.79 |
4.69 |
165.30 |
|
EP-8043 |
7.4 |
6.3 |
276.00 |
9.73 |
46.62 |
5.92 |
208.81 |
|
EP-8043 |
11.1 |
10.6 |
541.00 |
19.08 |
117.66 |
4.60 |
162.17 |
|
EP-8060 |
7.4 |
7.7 |
303.00 |
10.69 |
56.98 |
5.32 |
187.55 |
|
EP-8060 |
11.1 |
14.5 |
617.00 |
21.76 |
160.95 |
3.83 |
135.21 |
|
HD-8060 |
7.4 |
6 |
381.00 |
13.44 |
44.4 |
8.58 |
302.65 |
|
HD-8060 |
11.1 |
11 |
451 |
15.91 |
122.1 |
3.69 |
130.28 |
|
HD-8060 |
14.8 |
19 |
705 |
24.87 |
281.2 |
2.51 |
88.43 |
|
EP-9047 |
7.4 |
9 |
403.00 |
14.21 |
66.60 |
6.05 |
213.42 |
|
EP-9047 |
11.1 |
15.5 |
770.00 |
27.16 |
172.05 |
4.48 |
157.85 |
|
EP-9050 |
7.4 |
7.6 |
336.00 |
11.85 |
56.24 |
5.97 |
210.72 |
|
EP-9050 |
11.1 |
14.4 |
738.00 |
26.03 |
159.84 |
4.62 |
162.85 |
|
HD-9075 |
7.4 |
10.6 |
378.00 |
13.33 |
78.44 |
4.82 |
169.97 |
|
HD-9075 |
11.1 |
18.7 |
682.00 |
24.05 |
207.57 |
3.29 |
115.88 |
|
EP-9070 |
7.4 |
11.3 |
414.00 |
14.60 |
83.62 |
4.95 |
174.62 |
|
EP-9070 |
11.1 |
22 |
734.00 |
25.89 |
244.20 |
3.01 |
106.01 |
|
EP-1047 |
7.4 |
13.9 |
579.00 |
20.42 |
102.86 |
5.63 |
198.54 |
|
EP-1047 |
11.1 |
24 |
1084.00 |
38.23 |
266.40 |
4.07 |
143.52 |
|
EP-1060 |
7.4 |
10.5 |
458.00 |
16.15 |
77.70 |
5.89 |
207.90 |
|
EP-1060 |
11.1 |
18.5 |
862.00 |
30.40 |
205.35 |
4.20 |
148.05 |
