GW-RG-MMN RETRACTABLE MICRO LANDING GEAR

¡@

¡@

GW/RG-MMN

GWRGP003

It came with thicker and longer piano wire with diameter of 2.5mm (0.10"), thicker screws (M2.6), and stainless wheel retainer base. The gear mount was well reinforced, and made of better plastic. It is certainly much tougher than the old one.

This landing gear set can be used on Electrical R/C airplane at full weight (AUW) of below 1000 grams (35.33 oz.). It is the best one for GWS-190, GWS-40, GWS-T6 and FORSOSA II.

Packing: 2 sets per bag.

Packing size¡G230*85*16mm   Net weight:27.23g  Gross weight: 39.23g

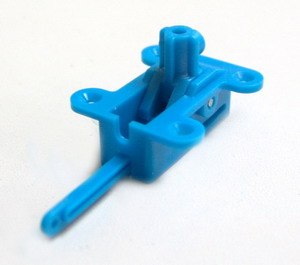

<Illustration of finished landing gear mount>

¡@

<PARTS LIST> (pcs.)

¡@

1. Landing gear mount and wire base (Assembled) x 2

2. Piano wire for landing gear x 2

3. Wheel axel retainer base x 2

4. Screw for retainer bas x 2

5. Screw for wire mount x 2

6. Hex (Allan) wrench x 1

7. Screws for mounting gear base x 8

8. Manual x 1

<Illustration of the whole landing gear>
¡@

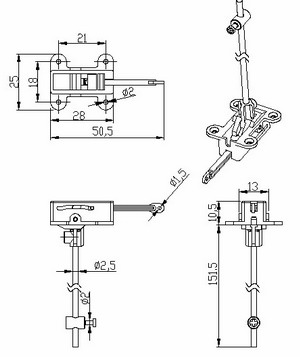

<FULL SIZE 3-VIEW> mm

¡@
