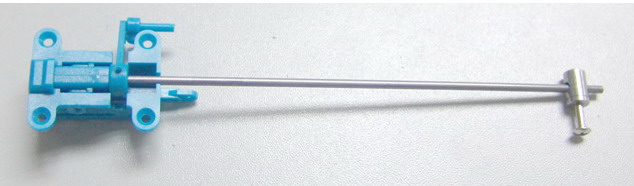

GW-RG-MN  The retractable NOSE gear





GW/RG-MN

GWRGP004

This newly designed NOSE gear can be used with the new retractable landing gear“GWRGP003”

Features:

  1. Its weight is 10g (0.35 oz) only, probably the lightest retract nose landing gear on the market.

  2. All set screws are M2.6 one, thicker and stronger.

  3. Base and mount are made of better material with enough reinforcements.

  4. It can be operated by GWS Naro servo.

It can be used on electrical R/C airplane at the full weight (AUW) of less than 1000g(35.33 oz), the best retract nose gear for GWS-38, GWS-262, GWS-15, GWS-A4, GWS-J10.

Packing : 1 gear per set.

Packing size: 230x85x16mm (9.06x3.35x0.63)

Net weight: 10g (0.35 oz)

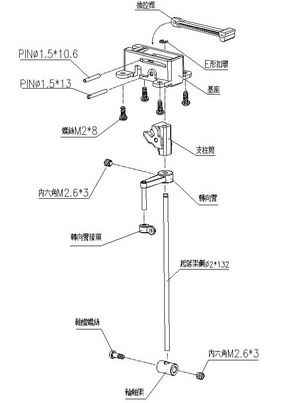

<Illustration of the whole landing gear>

<PARTS LIST> (pcs.)



1. Retractable nose gear mount/base x 1

2. Wheel retainer base x 1

3. Wheel retainer screw x 1

4. Set screw x 2

6. Hex (Allan) wrench x 1

7. Mounting screw x 4

8. Manual x 1

<FULL SIZE 3-VIEW> mm
