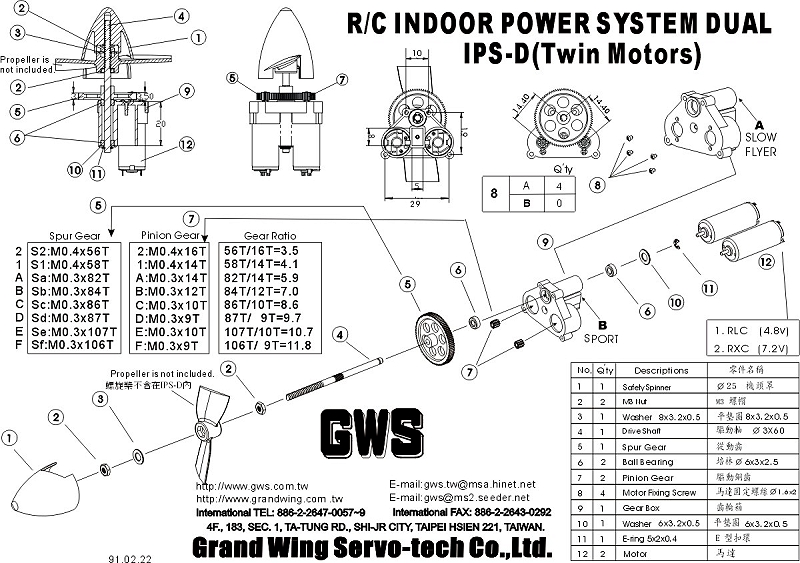

GW/IPSD (2/1/A/B/C/D/E/F) INDOOR POWER SYSTEM DUAL

GW/IPSD-RXC (2,1,A,B,C,D )
GW/IPSD-RXC (E,F )
GW/IPSD-RLC (2,1,A,B,C,D )
GW/IPSD-RLC (E,F )

WEIGHT : 47g  (1.7 oz)
Recommended BATTERY : 730AAAmAh / 600~1600AAmAh (7.2V)
VIEW : PHOTO-1 , PHOTO-2

2

M0.4 x 56T

 M0.4 x 16T 56T / 16 T= 3.5
1

M0.4 x 58T

 M0.4 x 14T 58T / 14 T= 4.1
A

M0.3 x 82T

 M0.3 x 14T 82T / 14 T= 5.9
B M0.3 x 84T M0.3 x 12T 84T / 12 T= 7.0
C M0.3 x 86T M0.3 x 10T 86T / 10 T= 8.6
D M0.3 x 87T M0.3 x   9T 87T /  9 T = 9.7
E M0.3 x107T M0.3 x 10T 107T /10T = 10.7
F M0.3 x106T M0.3 x   9T 106T /  9T = 11.8

Recommended battery :730AAAmAh / 600~1600AAmAh (7.2V)

GEAR TYPE & GEAR RATIO 2 1 A B C D E F
PROPELLER
8043 ● ╳ ╳ ╳ ╳ ╳ ╳ ╳
8060 ◎ ● ╳ ╳ ╳ ╳ ╳ ╳
9047 ● ◎ ╳ ╳ ╳ ╳ ╳ ╳
9070 ╳ ● ╳ ╳ ╳ ╳ ╳ ╳
1047 ╳ ● ╳ ╳ ╳ ╳ ╳ ╳
1080 ╳ ╳ ● ╳ ╳ ╳ ╳ ╳
1147 ╳ ╳ ◎ ╳ ╳ ╳ ╳ ╳
1180 ╳ ╳ ● ╳ ╳ ╳ ╳ ╳
1260 ╳ ╳ ╳ ● ╳ ╳ ╳ ╳
1280 ╳ ╳ ╳ ● ╳ ╳ ╳ ╳
1365 ╳ ╳ ╳ ◎ ╳ ╳ ╳ ╳
1390 ╳ ╳ ╳ ● ● ╳ ╳ ╳
1470 ╳ ╳ ╳ ╳ ◎ ● ╳ ╳
1410 ╳ ╳ ╳ ╳ ● ◎ ● ●
1575 ╳ ╳ ╳ ╳ ● ● ◎ ●
1510 ╳ ╳ ╳ ╳ ╳ ● ● ●
◎ EXCELLENT  ● GOOD   △ FAIR   ╳ POOR
GW/IPSD-RXC-2       (M0.4)  56T / 16T = 3.5
PROPELLER Volts (v) Amps (A) Thrust Power (w) Efficiency
(g) (oz) (g/w) (oz/kw)
EP8043 7.2 3.0 176

6.16

 21.6 8.15 287
8.4 3.6 207

7.25

 30.2 6.85 241
EP8060 6.0 3.0 141

4.94

 18.0 7.83 276
7.2 3.9 188

6.58

 28.1 6.70 236
EP9047 6.0 3.6 169

5.92

 21.6 7.82 276
7.2 4.1 191

6.69

 29.7 6.42 228

TOP

GW/IPSD-RXC-1       (M0.4)  58T / 14T =  4.1

PROPELLER Volts (v) Amps (A) Thrust Power (w) Efficiency
(g) (oz) (g/w) (oz/kw)
EP8060 7.2 3.1 168

5.88

 22.3 7.53 265
8.4 3.9 219

7.67

 32.8 6.69 236
EP9047 6.0 2.9 153

5.36

 17.4 8.79 310
7.2 3.7 205

7.18

 26.6 7.70 271
EP9070 6.0 3.5 152

5.32

 21.0 7.24 255
7.2 4.0 171

5.99

 28.8 5.94 209
EP1047 6.0 2.9 151

5.29

 17.4 8.68 306
7.2 3.7 199

6.97

 26.6 7.47 263

TOP

GW/IPSD-RXC-A        (M0.3)  82T / 14T =  5.9

PROPELLER Volts (v) Amps (A) Thrust Power (w) Efficiency
(g) (oz) (g/w) (oz/kw)
EP1080 6.0 2.7 151

5.29

 16.2 9.32 329
7.2 3.4 195

6.83

 24.5 7.97 281
8.4 4.3 244

8.54

 36.1 6.76 238
EP1147 6.0 2.6 172

6.02

 15.6 11.03 389
7.2 3.3 226

7.91

 23.8 9.51 335
8.4 4.2 286

10.01

 35.3 8.11 286
EP1180 6.0 3.1 180

6.30

 18.6 9.68 341
7.2 4.0 231

8.09

 28.8 8.02 283

TOP

GW/IPSD-RXC-B       (M0.3)  84T / 12T =  7.0

PROPELLER Volts (v) Amps (A) Thrust Power (w) Efficiency
(g) (oz) (g/w) (oz/kw)
EP1260 7.2 3.3 236

8.26

 23.8 9.93 350
8.4 4.1 306

10.71

 34.4 8.89 313
EP1280 6.0 2.9 190

6.65

 17.4 10.92 385
7.2 3.8 241

8.44

 27.7 8.81 311
EP1365 6.0 3.0 208

7.34

 18.00 11.56 408
7.2 3.8 276

9.73

 27.36 10.09 356
EP1390 6.0 2.8 194

6.79

 16.8 11.55 407
7.2 3.7 253

8.86

 26.6 9.50 335

TOP

GW/IPSD-RXC-C        (M0.3)  86T / 10T =  8.6
PROPELLER Volts (v) Amps (A) Thrust Power (w) Efficiency
(g) (oz) (g/w) (oz/kw)
EP1390 6.0 2.8

194

6.79

16.8

11.55

 407
7.2 3.7

253

8.86

26.6

9.50

 335
EP1470 6.0 2.7

208

7.28

16.2

12.84

 453
7.2 3.6

267

9.35

25.6

10.47

 363
EP1410 6.0 3.5

207

7.25

21.0

9.86

 348
7.2 4.5

260

9.10

32.4

8.02

 283
EP1575 6.0 2.5

206

7.21

15.0

13.73

 484
7.2 3.2

267

9.35

23.0

11.59

 409

TOP

GW/IPSD-RXC-D       (M0.3)  87T /   9T =  9.7

PROPELLER Volts (v) Amps (A) Thrust Power (w) Efficiency
(g) (oz) (g/w) (oz/kw)
EP1470 7.2 2.9

247

8.65

20.9

11.83

 417
8.4 3.6

313

10.96

30.2

10.35

 365
EP1410 6.0 2.9

198

6.93

17.4

11.38

 401
7.2 3.7

253

8.86

26.6

9.50

 335
EP1575 6.0 2.0

187

6.55

12.0

15.58

 550
7.2 2.6

238

8.33

18.7

12.71

 448
8.4 3.3

307

10.75

27.7

11.08

 391
EP1510 6.0 2.6

195

6.83

15.6

12.50

 441
7.2 3.4

251

8.79

24.5

10.25

 362

TOP

GW/IPSD-RXC-E       (M0.3)107T / 10T = 10.7
PROPELLER Volts (v) Amps (A) Thrust Power (w) Efficiency
(g) (oz) (g/w) (oz/kw)
EP1410 6.0 2.7

187

6.55

16.2

11.54

 407
7.2 3.4

255

6.65

24.5

10.42

 367
EP1575 6.0 1.7

173

6.06

10.2

16.96

 598
7.2 2.3

237

8.30

16.6

14.31

 505
8.4 2.9

306

10.71

24.4

12.56

 443
EP1510 6.0 2.4

195

6.83

14.4

13.54

 478
7.2 3.0

261

9.14

21.6

12.08

 426

TOP
GW/IPSD-RXC-F       (M0.3)106T /   9T = 11.8
PROPELLER Volts (v) Amps (A) Thrust Power (w) Efficiency
(g) (oz) (g/w) (oz/kw)
EP1410 6.0 2.1

177

6.20

12.6

14.05

 495
7.2 2.9

240

8.40

20.9

11.49

 405
8.4 3.5

296

10.36

29.4

10.07

 355
EP1575 6.0 1.4

149

5.22

8.10

17.74

 626
7.2 1.8

205

7.18

13.0

15.82

 558
8.4 2.3

273

9.56

19.3

14.13

 498
EP1510 6.0 1.9

167

5.85

11.4

14.65

 517
7.2 2.6

230

8.05

18.7

12.29

 433
8.4 3.2

288

10.08

26.9

10.71

 378

TOP



GW/IPSD-RLC (4.8V)

WEIGHT : 42.5(g)  1.50 (oz)
Recommended BATTERY : 4NAAA730mAh /AA600~1600mAh)
VIEW : PHOTO-1 , PHOTO-2






GEAR TYPE & GEAR RATIO 2 1 A B C D E F
PROPELLER
7060 ● ╳ ╳ ╳ ╳ ╳ ╳ ╳
8043 ◎ ╳ ╳ ╳ ╳ ╳ ╳ ╳
8060 ● ● ╳ ╳ ╳ ╳ ╳ ╳
9047 ╳ ◎ ╳ ╳ ╳ ╳ ╳ ╳
9070 ╳ ● ╳ ╳ ╳ ╳ ╳ ╳
1047 ╳ ╳ ◎ ╳ ╳ ╳ ╳ ╳
1080 ╳ ╳ ● ╳ ╳ ╳ ╳ ╳
1147 ╳ ╳ ● ● ╳ ╳ ╳ ╳
1180 ╳ ╳ ╳ ● ╳ ╳ ╳ ╳
1260 ╳ ╳ ╳ ◎ ╳ ╳ ╳ ╳
1280 ╳ ╳ ╳ ● ● ╳ ╳ ╳
1365 ╳ ╳ ╳ ╳ ◎ ╳ ╳ ╳
1390 ╳ ╳ ╳ ╳ ● ● ╳ ╳
1470 ╳ ╳ ╳ ╳ ╳ ◎ ╳ ╳
1410 ╳ ╳ ╳ ╳ ╳ ● ● ●
1575 ╳ ╳ ╳ ╳ ╳ ╳ ◎ ◎
1510 ╳ ╳ ╳ ╳ ╳ ╳ ● ●





GW/IPSD-RLC-2          (M0.4)  56T / 16T = 3.5
PROPELLER Volts (v) Amps (A) Thrust Power (w) Efficiency
(g) (oz) (g/w) (oz/kw)
EP7060 2.4 2.3

38

1.33

5.5

6.94

 243
3.6 4.1

91

3.19

14.7

6.18

 217
4.8 6.1

146

5.11

29.1

5.02

 176
EP8043 2.4 2.3

57

2.00

5.5

10.33

 364
3.6 3.9

116

4.06

14.1

8.22

 291
4.8 5.7

180

6.30

27.5

6.54

 232
EP8060 2.4 2.6

63

2.21

6.3

10.02

 356
3.6 4.7

123

4.31

16.9

7.27

 256
4.8 6.6

182

6.37

31.7

5.74

 203

TOP
GW/IPSD-RLC-1         (M0.4)  58T / 14T =  4.1
PROPELLER Volts (v) Amps (A) Thrust Power (w) Efficiency
(g) (oz) (g/w) (oz/kw)
EP8060 2.4 2.2

52

1.82

5.3

9.85

 347
3.6 3.7

104

3.64

13.3

7.81

 275
4.8 5.2

156

5.46

25.0

6.25

 220
EP9047 2.4 2.5

64

2.24

6.0

10.67

 376
3.6 4.3

123

4.31

15.5

7.95

 280
4.8 5.8

183

6.41

27.8

6.57

 232
EP9070 2.4 2.9

62

2.17

7.0

8.91

 314
3.6 4.9

115

4.03

17.6

6.52

 230
4.8 6.7

160

5.60

32.2

4.98

 175

TOP

GW/IPSD-RLC-A          (M0.3)  82T / 14T =  5.9

PROPELLER

Volts (v)

Amps (A)

Thrust

Power (w)

Efficiency

(g)

(oz)

(g/w)

(oz/kw)
EP1047

2.4

1.9

56

1.96

4.6

12.28

 433

3.6

3.3

124

4.34

11.9

10.44

 368

4.8

4.9

204

7.14

23.5

8.67

 306
EP1080

2.4

2.5

66

2.31

6.0

11.00

 388

3.6

4.4

134

4.69

15.8

8.46

 298

4.8

6.4

201

7.04

30.7

6.54

 231
EP1147

2.4

2.5

73

2.56

6.0

12.17

 429

3.6

4.3

149

5.22

15.5

9.63

 339

4.8

6.3

231

8.09

30.2

7.64

 269

TOP
GW/IPSD-RLC-B         (M0.3)  84T / 12T =  7.0
PROPELLER Volts (v) Amps (A) Thrust Power (w) Efficiency
(g) (oz) (g/w) (oz/kw)
EP1147 2.4 1.9

65

2.28

4.6

14.25

 503
3.6 3.4

132

4.62

12.2

10.78

 380
4.8 5.0

206

7.21

24.0

8.58

 303
EP1180 2.4 2.2

71

2.49

5.3

13.45

 474
3.6 3.9

137

4.80

14.0

9.76

 344
4.8 5.8

211

7.39

27.8

7.58

 267
EP1260 2.4 2.4

80

2.80

5.8

13.89

 490
3.6 4.2

147

5.15

15.1

9.72

 343
4.8 6.0

231

8.09

28.8

8.02

 283
EP1280 2.4 2.8

87

3.05

6.7

12.95

 457
3.6 4.7

160

5.60

16.9

9.46

 334
4.8 6.7

235

8.23

32.2

7.31

 258

TOP

GW/IPSD-RLC-C          (M0.3)  86T / 10T =  8.6
PROPELLER Volts (v) Amps (A) Thrust Power (w) Efficiency
(g) (oz) (g/w) (oz/kw)
EP1280 2.4 2.0

76

2.66

4.8

15.83

 558
3.6 3.5

150

5.25

12.6

11.90

 420
4.8 5.2

233

8.16

25.0

9.33

 329
EP1365 2.4 2.0

74

2.59

4.8

15.42

 544
3.6 3.6

153

5.36

13.0

11.81

 416
4.8 5.3

243

8.51

25.4

9.55

 337
EP1390 2.4 2.6

81

2.84

6.2

12.98

 458
3.6 4.5

168

5.88

16.2

10.37

 366
4.8 6.5

243

8.51

31.2

7.79

 275

TOP
GW/IPSD-RLC-D         (M0.3)  87T /   9T =  9.7
PROPELLER Volts (v) Amps (A) Thrust Power (w) Efficiency
(g) (oz) (g/w) (oz/kw)
EP1365 2.4 1.8

71

2.49

4.3

16.44

 580
3.6 3.1

145

5.08

11.2

12.99

 458
4.8 4.5

229

8.02

21.6

10.60

 374
EP1390 2.4 2.3

87

3.05

5.5

15.76

 556
3.6 4.0

165

5.78

14.4

11.46

 404
4.8 5.8

241

8.44

27.8

8.66

 305
EP1470 2.4 2.0

83

2.91

4.8

17.29

 610
3.6 3.6

165

5.78

13.0

12.73

 449
4.8 5.4

262

9.17

26.0

10.11

 357
EP1410 2.4 2.8

95

3.33

6.7

14.14

 499
3.6 4.7

175

6.13

16.9

10.34

 365
4.8 6.8

240

8.40

32.6

7.35

 259

TOP
GW/IPSD-RLC-E         (M0.3)107T / 10T = 10.7
PROPELLER Volts (v) Amps (A) Thrust Power (w) Efficiency
(g) (oz) (g/w) (oz/kw)
EP1410 2.4 2.4

87

3.05

5.8

15.10

 533
3.6 4.2

168

5.88

15.1

11.11

 392
4.8 6.1

243

8.51

29.3

8.30

 293
EP1575 2.4 1.8

79

2.77

4.3

18.29

 645
3.6 3.0

167

5.85

10.8

15.46

 545
4.8 4.5

265

9.28

21.6

12.27

 433
6.0 6.3

368

12.88

37.8

9.74

 343
EP1510 2.4 2.2

89

3.12

5.3

16.86

 595
3.6 3.8

162

5.67

13.7

11.84

 418
4.8 5.6

253

8.86

26.9

9.41

 332

TOP
GW/IPSD-RLC-F         (M0.3)106T /   9T = 11.8
PROPELLER Volts (v) Amps (A) Thrust Power (w) Efficiency
(g) (oz) (g/w) (oz/kw)
EP1410 2.4 2.1

83

2.91

5.0

16.47

 581
3.6 3.7

161

5.64

13.3

12.09

 426
4.8 5.6

254

8.89

26.9

9.11

 333
EP1575 2.4 1.5

75

2.63

3.6

20.83

 735
3.6 2.7

149

5.22

9.7

15.33

 541
4.8 4.0

242

8.47

19.2

12.60

 445
6.0 5.5

337

11.80

33.0

10.21

 360
EP1510 2.4 1.9

80

2.80

4.6

17.54

 619
3.6 3.4

157

5.50

12.2

12.83

 452
4.8 5.0

239

8.37

24.0

9.96

 351
TOP



 © GWS Grand Wing Servo-Tech Co., Ltd., All Rights Reserved.
