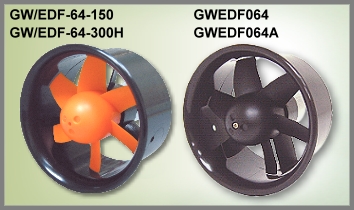

GW/EDF-64 ELECTRIC DUCTED FAN POWER SYSTEM



GW/EDF64-150 (Black Duct )

GW/EDF64-300H (Gray Duct)

GWEDF064 EDF64-150(2540*6) (Black Duct )

GWEDF064A EDF64-300H(2540*6) (Gray Duct)

GWEDF064B  EDF64-BL2028 (Green)

GWEDF064C EDF64-300 (2540*6) Without Motor

GWEDF064D EDF64-BL2028 (Blue)


WEIGHT : 67~73g
  RED : High voltage boosts power , but fatally damages the motor (Don't use)
Click here photo to view : PHOTO(1)  ,  PHOTO(2) , PHOTO(3)
GWS EDF64 with GWS BL motors




The following test datas have been noted all by applying continual high RPMs for 5 minutes respectively.

POWER SYSTEM: EDF-64     Motor: GWBLM005 Weight: 57 Grams KV Value: 4600
PROPELLER Volts (V) Amps (A) Thrust Power (W) Efficiency Temp. RPM
g oz g/w oz/kw C.
EP2540X6 7.4 9.5 212.00 7.48 70.30 3.02 106.36 39 23300
EP2540X6 11.1 17.2 410.00 14.46 190.92 2.15 75.74 52 31950

POWER SYSTEM: EDF-64     Motor: GWBLM005C Weight: 57 Grams KV Value: 2300
PROPELLER Volts (V) Amps (A) Thrust Power (W) Efficiency Temp. RPM
g oz g/w oz/kw C.
EP2540X6 7.4 2.2 79.00 2.79 16.28 4.85 171.15 32 13900
EP2540X6 11.1 3.9 158.00 5.57 43.29 3.65 128.73 35 20450
EP2540X6 14.8 6.2 268.00 9.45 91.76 2.92 103.01 42 26650

POWER SYSTEM: EDF-64     Motor: GWBLM005A Weight: 57 Grams KV Value: 3900
PROPELLER Volts (V) Amps (A) Thrust Power (W) Efficiency Temp. RPM
g oz g/w oz/kw C.
EP2540X6 7.4 5.9 161.00 5.68 43.66 3.69 130.06 48 19800
EP2540X6 11.1 10.8 301.00 10.62 119.88 2.51 88.56 50 28400
EP2540X6 14.8 16.2 508.00 17.92 239.76 2.12 74.73 60 35800

POWER SYSTEM: EDF-64     Motor: GWBLM005B Weight: 57 Grams KV Value: 3000
PROPELLER Volts (V) Amps (A) Thrust Power (W) Efficiency Temp. RPM
g oz g/w oz/kw C.
EP2540X6 7.4 3.5 102.00 3.60 25.90 3.94 138.90 37 16150
EP2540X6 11.1 6.3 218.00 7.69 69.93 3.12 109.95 48 23650
EP2540X6 14.8 9.7 365.00 12.87 143.56 2.54 89.67 56 30500
GW/EDF-64(EP2540X6)   MOTOR : EM150       Weight : 67g
ROTOR Volts (v) Amps (A) Thrust Power (w) Efficiency
(g) (oz) (g/w) (oz/kw)
EP2540X6 7.2 4.4 117 4.13 31.68 3.69 130
EP2540X6 8.4 5.6 140 4.94 47.04 2.98 105
EP2540X6 9.6 6.7 169 5.96 64.32 2.63 93
EP2540X6 10.8 8.3 201 7.09 89.64 2.24 79

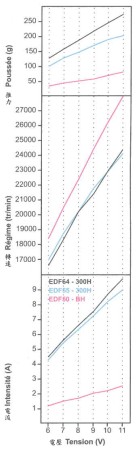

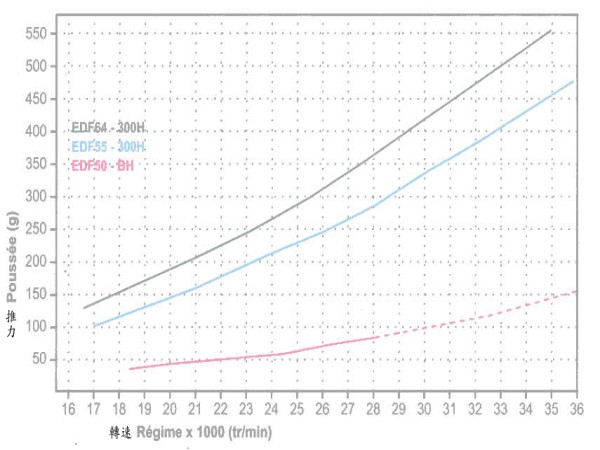

GW/EDF-64(EP2540X6)   MOTOR : EM300H      Weight : 73g
ROTOR Volts (v) Amps (A) Thrust Power (w) Efficiency
(g) (oz) (g/w) (oz/kw)
EP2540X6 7.2 4.6 133 4.69 33.12 4.02 142
EP2540X6 8.4 5.7 167 5.89 47.88 3.49 123
EP2540X6 9.6 6.6 190 6.70 63.36 3.00 106
EP2540X6 10.8 7.7 218 7.69 83.16 2.62 92
