MXL SPORT II

NOTE : DYE LOTS MAY VARY

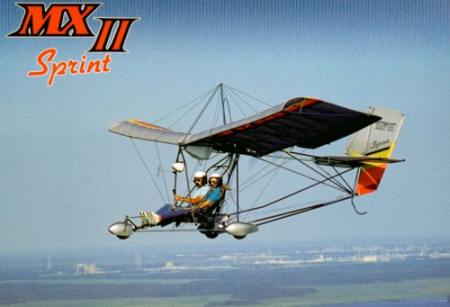

MXII SPRINT

The MXII SPRINT is ideal for the recreational flyer and flight schools. Its high lift partial double surfaced wings give it an exceptionally short take off roll and predictable handling at very low flight speeds. These characteristics make the MXII SPRINT easier to learn to fly than anything in its class. When equipped with floats, the MXII SPRINT's high lift wing will get you out of the water quicker and landing slower. Like all Quicksilvers, the MXII SPRINT's simple design and bolt together construction make preflight inspection and maintenance a breezetwo seat light recreational aircraft in the world. WORLD'S #1 TRAINER

MXL SPORT II

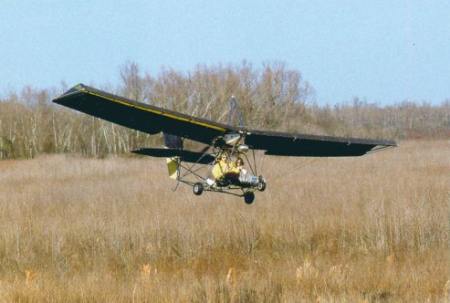

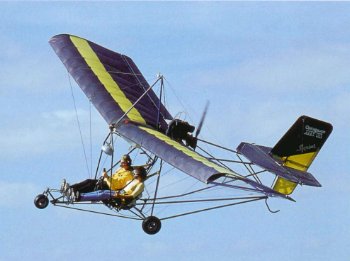

MX II Sprint R503 / R582

The MX II Sprint is ideal for the recreational flier and flight schools. Its high lift, partial double surface wings give it an exceptionally short take-off roll and predictable handling at very low flight speeds. These characteristics make the MX II Sprint easier to learn to fly than anything in its class. When equipped with floats, the MX II Sprint’s high lift wing will get you out of the water quicker and have you landing slower.
The MX II Sprint’s simple design and bolt together construction make preflight inspections and routine maintenance a breeze. And as with all other Quicksilvers, its true assembly-style kit will have you flying in days, not weeks or months.


FEATURES


  • Six Month Limited Warranty (See Dealer For Details)
  • Dual CDI Electronic Ignition, Dual Carburetor Engine
  • Steerable Nose Wheel Standard
  • Main Wheel Brakes
  • High Lift, Partial Double Surface Wings
  • Extra Ribs for Firm Airfoil
  • Conventional 3-Axis Controls
  • 68" Propeller for More Power With Less Noise
  • New, Wider Cabin for Greater Pilot Comfort
  • Inflight Adjustable Trim Control
  • Tapered Stabilizer
  • Tubular Braced Tail
  • Excellent Crosswind Capability
  • Easy Handling and Responsive Control
  • Short Takeoff and Landing
  • Quicksilver’s Famous Quality
  • Easy-to-Assemble Kit (Average 40 to 60 Hours)
  • Airspeed Indicator Included




NOTE: All specifications are based on manufacturer's calculations. All performance figures are based
on standard day, standard atmosphere, at sea level and 350 lb. crew weight, unless otherwise noted.
The performance shown reflects this aircraft’s maximum potential.

Flight training required. Specifications subject to change without notice. This aircraft is not
designed for aerobatics. Be sure to follow the owners manual recommendation for maintenance guidelines.
The pilot is responsible for operating this aircraft in accordance with the applicable Federal and State Regulations.

MXL SPORT II


SPECIFICATIONS

   SPECIFICATIONS:
      Powerplant......................................Rotax 503
      No. Cylinders..................................................2
      Displacement.....................................496.7 cc
      Horsepower.............................................50 hp
      Recommended TBO...........................250 hrs
      Propeller............................................68" x 32"
      Length...........................................18 ft - 1/2 in
      Height.................................................9 ft - 1 in
      Wingspan........................................32 ft - 7 in
      Wing area.........................................180 sq ft
      Wing loading..................................4.0 lb/sq ft
      Power loading.................................14.4 lb/hp
      Seats..............................................................2
      Minimum flight crew......................................1
      Empty Weight.....................................325 lbs
      Useful load..........................................395 lbs
      Payload w/full fuel...............................359 lbs
      Max takeoff weight.............................720 lbs
      Fuel capacity.........................................6 gals

   PERFORMANCE:
      Takeoff distance, ground roll................102 ft
      Takeoff distance, 50 ft obstacle...........352 ft
      Rate of climb......................................595 fpm
      Max level speed, sea level.................55 mph
      Landing distance, 50 ft obstacle..........240 ft
      Landing distance, ground roll..................75 ft
      Glide Ratio...............................................4.5:1
      Minimum sink rate..............................630 fpm

   CRUISE PERFORMANCE CHART:
      At 55% power (rpm/mph)..................5000/39
      At 65% power (rpm/mph)..................5300/46
      At 75% power (rpm/mph)..................5600/51
      At 100% power (rpm/mph)................6500/55

   FUEL FLOW:
      At 55% power (gph/mi).........................3.2/73
      At 65% power (gph/mi).........................3.8/72
      At 75% power (gph/mi).........................4.4/69
      At 100% power (gph/mi).......................5.8/56

   AIRSPEEDS:
      Vx (Best angle of climb).....................36 mph
      Vy (Best rate of climb)........................39 mph
      Va (Design maneuvering)...................64 mph
      Vne (Never exceed).............................75 mph
      Vs1 (Stall, power off)...........................27 mph
      Vs0 (Stall, flaps down, power off).............N/A
      Landing approach speed...................39 mph


   KIT COST:.....................................Contact dealer for price

SPECIFICATIONS

   SPECIFICATIONS:
      Powerplant......................................Rotax 582
      No. Cylinders..................................................2
      Displacement.....................................580.7 cc
      Horsepower.............................................64 hp
      Recommended TBO...........................250 hrs
      Propeller............................................68" x 36"
      Length...........................................18 ft - 1/2 in
      Height.................................................9 ft - 1 in
      Wingspan........................................32 ft - 7 in
      Wing area..........................................180 sq ft
      Wing loading..................................4.0 lb/sq ft
      Power loading...............................11.25 lb/hp
      Seats...............................................................2
      Minimum flight crew.......................................1
      Empty Weight.......................................330 lbs
      Useful load............................................390 lbs
      Payload w/full fuel.................................354 lbs
      Max takeoff weight...............................720 lbs
      Fuel capacity..........................................6 gals

   PERFORMANCE:
      Takeoff distance, ground roll...................79 ft
      Takeoff distance, 50 ft obstacle............202 ft
      Rate of climb.....................................1145 fpm
      Max level speed, sea level..................60 mph
      Landing distance, 50 ft obstacle...........240 ft
      Landing distance, ground roll..................75 ft
      Glide Ratio................................................4.5:1
      Minimum sink rate..............................630 fpm

   CRUISE PERFORMANCE CHART:
      At 55% power (rpm/mph)...................5000/42
      At 65% power (rpm/mph)...................5300/50
      At 75% power (rpm/mph)...................5600/56
      At 100% power (rpm/mph).................6500/60

   FUEL FLOW:
      At 55% power (gph/mi)..........................4.1/61
      At 65% power (gph/mi)..........................4.8/63
      At 75% power (gph/mi)..........................5.6/60
      At 100% power (gph/mi)........................7.4/48

   AIRSPEEDS:
      Vx (Best angle of climb).......................36 mph
      Vy (Best rate of climb)..........................39 mph
      Va (Design maneuvering)....................64 mph
      Vne (Never exceed)..............................75 mph
      Vs1 (Stall, power off).............................27 mph
      Vs0 (Stall, flaps down, power off)..............N/A
      Landing approach speed....................39 mph


   KIT COST:.....................................Contact dealer for price

All specifications are based on manufacturers calculations.
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
This information is for reference only, please consult Quicksilver Mfg. or one of it’s dealers for exact
and up to date specifications.
