SUB-MICRO SERVO

Update : 04/30/12

SUB MICRO

MICRO

SAIL WINCH

Low Profile & Landing Gear retract

ROBOTIC

SUB-MICRO SERIES

型號	STD	BB	BBMG	Size ( L x W x H ) mm/in	Weight		4.8V			6V
					Weight		Speed (sec/60°)	Torque		速度 (秒/60°)	Torque
					g	oz	Speed (sec/60°)	kg-cm	oz-in	速度 (秒/60°)	kg-cm	oz-in

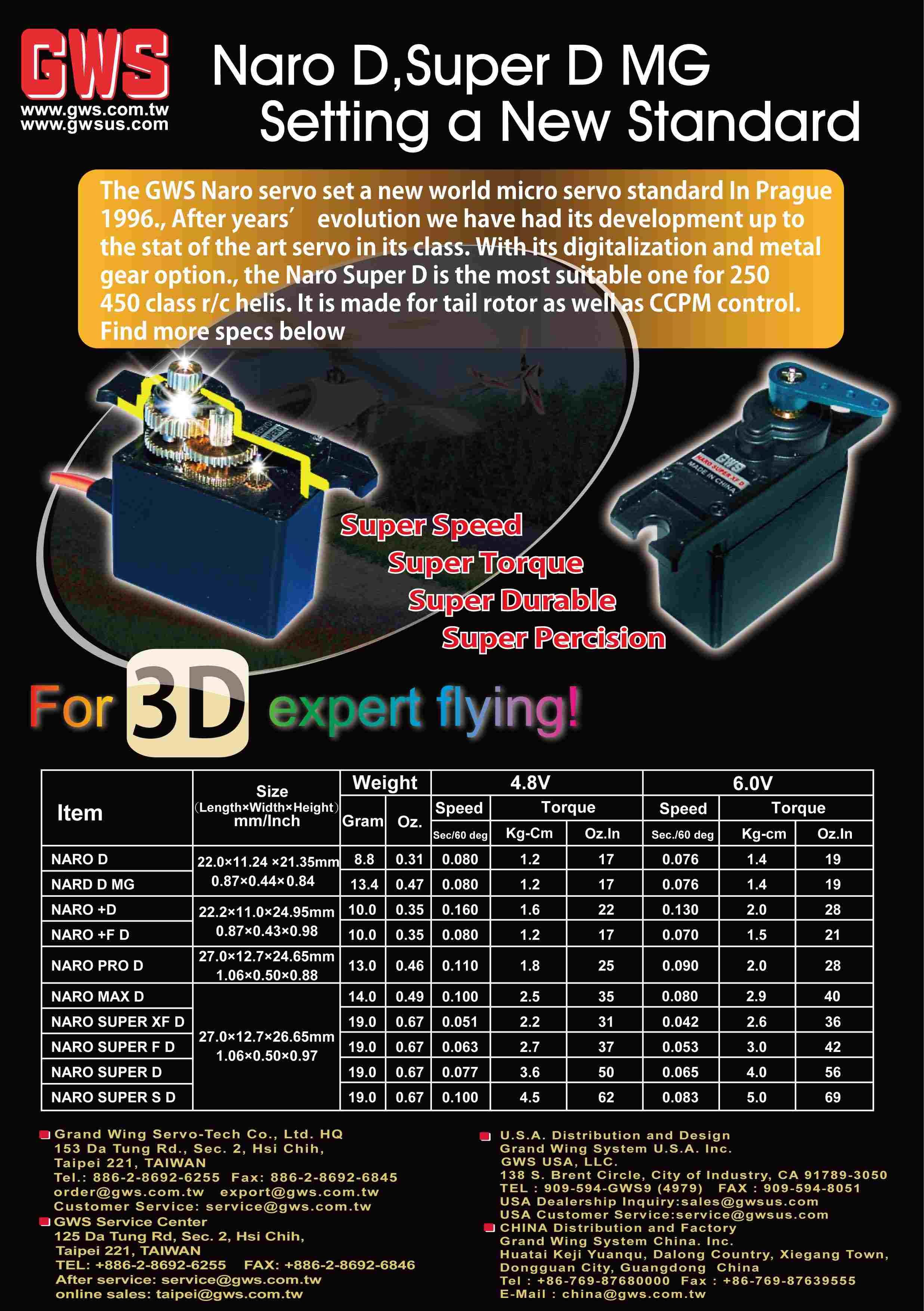

NARO D		●		22.0x11.24x21.35 0.87x0.44x0.84	8.8	0.31	0.08	1.2	17	0.07	1.4	19
NARO D MG			●	22.0x11.24x21.35 0.87x0.44x0.84	13.4	0.47	0.08	1.2	17	0.07	1.4	19
NARO+D		●		22.2 x 11.0 x 24.95 0.87x0.43x0.98	10.0	0.35	0.16	1.6	22	0.13	2.0	28
NARO+F D		●		22.2 x 11.0 x 24.95 0.87x0.43x0.98	10.0	0.35	0.08	1.6	22	0.07	1.8	25
NARO PRO D		●		27.0x12.7x24.65 1.06x0.50x0.88	13.0	0.46	0.11	1.8	25	0.09	2.0	28
NARO MAX D		●		27.0x12.7x26.65 1.06x0.50x0.97	14.0	0.49	0.10	2.2	31
NARO MAX D MG				27.0x12.7x26.65 1.06x0.50x0.97	14.0	0.49	0.145	2.50	35	0.130	2.90	40
NARO SUPER XF D			●	27.0x12.7x26.65 1.06x0.50x0.97	19.0	0.67	0.051	2.2	31	0.042	2.6	36
NARO SUPER F D			●				0.06	2.7	37	0.05	3.0	42
NARO SUPER S D			●				0.10	4.5	62	0.08	5.0	69
NARO SUPER D			●				0.08	3.6	50	0.07	4.0	56

GWS Digital Servos are all programmable and with the most advanced ASIC (Application Specific IC) IC to process the input signals, all with the best response time, and best resolution in 12+ bits or 4096+ steps. They work faster, more smoothly, more accurate and with more torque.

These performance are much better than those another brands' digital servos which were with only MCU (micro controller) ones.

Those MCU ones are with lower response time, and lower resolution (10 bits or 1024 steps).

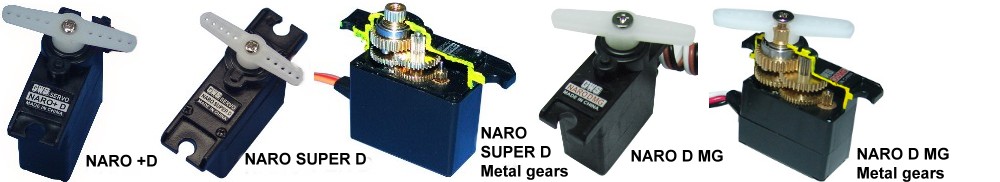

GWS Naro Super D series are all with metal gears and ball bearings, best for fixed wing airplanes, sailplanes and robots

Model	STD	BB	BBMG	Size ( L x W x H ) mm/in	Weight		4.8V			6V
					Weight		Speed (sec/60°)	Torque		Speed (sec/60°)	Torque
					g	oz	Speed (sec/60°)	kg-cm	oz-in	Speed (sec/60°)	kg-cm	oz-in
PICO	●			22.8x9.5x16.5 0.90x0.37x0.61	5.40	0.19	0.12	0.70	10	0.09	0.84	12
PICO F	●			22.8x9.5x16.5 0.90x0.37x0.61	5.40	0.19	0.10	0.60	8.3	0.08	0.70	9.7
PICO+ F		●		22.8x9.5x19.8 0.90x0.37x0.78	6.20	0.22	0.12	0.79	11	0.10	0.90	12
PICO+	●			22.8x9.5x19.8 0.90x0.37x0.78	6.20	0.22	0.15	1.10	15	0.13	1.3	18
NARO	●			22.0x11.24x21.35 0.87x0.44x0.84	8.80	0.31	0.11	0.80	11	0.09	1.00	14
NARO HP	●	●	●	22.0x11.24x21.35 0.87x0.44x0.84	8.80	0.31	0.10	1.20	16	0.09	1.40	19
NARO+F HP		●		22.2x11.0x24.95 0.87x0.43x0.98	10.00	0.35	0.10	1.70	24	0.09	1.80	25
NARO PRO	●			27.0x12.7x24.65 1.06x0.50x0.88	13.00	0.46	0.12	1.60	22	0.10	1.90	26
NARO MAX		●		27.0x12.7x26.65 1.06x0.50x0.97	14.00	0.49	0.15	1.80	25	0.13	2.10	29

STD = Teflon Bushing BB = 1 Ball Bearing
