S125

Update : 07/07/10

MICRO SERIES

Model	STD	2BB	BBMG	Size ( L x W x H ) mm/in	Weight		4.8V			6V
					Weight		Speed (sec/60°)	Torque		Speed (sec/60°)	Torque
					g	oz	Speed (sec/60°)	kg-cm	oz-in	Speed (sec/60°)	kg-cm	oz-in
MICRO D			●	28x14x29.8 1.1x0.55x1.17	26	0.92	0.095	4.6	63.88	0.08	5	69.44
MICRO S D					28	0.98	0.14	5.8	81	0.12	6.7	93
MICRO F D					18	0.63	0.083	4	55.55	0.069	4.3	59.71
MICRO XF D					19	0.67	0.059	2.7	37.5	0.053	3.1	43.05
MICRO EF D					21.5	0.76	0.041	1.9	26.39	0.035	2.1	29.16

STD = Teflon Bushing+Build in plastic bushing with Top Case. 2BB= 2 Ball Bearings MG= Metal Gear with Ball Bearings D= Digital

GWS Digital Servos are all programmable and with the most advanced ASIC (Application Specific IC) IC to process the input signals, all with the best response time, and best resolution in 12+ bits or 4096+ steps. They work faster, more smoothly, more accurately.
These performance are much better than those another brands' digital servos which were with only MCU (micro controller) ones.
Those MCU ones are with lower response time, and lower resolution (10 bits or 1024 steps).

Model	STD	2BB	BBMG	Size ( L x W x H ) mm/in	Weight		4.8V			6V
					Weight		Speed (sec/60°)	Torque		Speed (sec/60°)	Torque
					g	oz	Speed (sec/60°)	kg-cm	oz-in	Speed (sec/60°)	kg-cm	oz-in

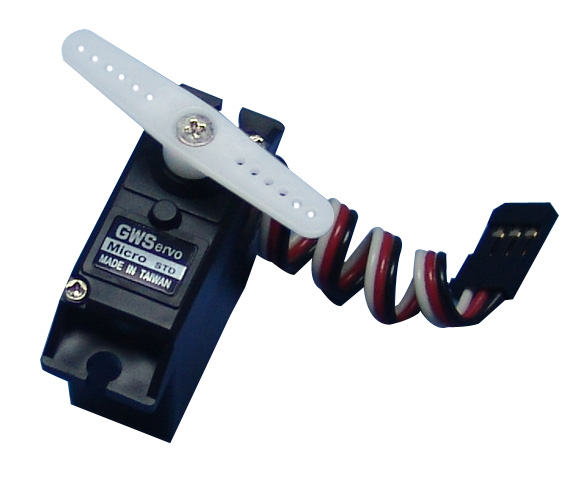

MICRO	●			28x14x29.8 1.1x0.55x1.17	18	0.63	0.16	1.80	25	0.13	2.30	32
MICRO L	●				17	0.59	0.13	1.50	21	0.10	1.80	25
MICRO MG		●			28	0.98	0.17	5.40	75	0.14	6.40	89

STD = Teflon Bushing+Build in plastic bushing with Top Case. 2BB= 2 Ball Bearings MG= Metal Gear with Ball Bearings
